Surface¶

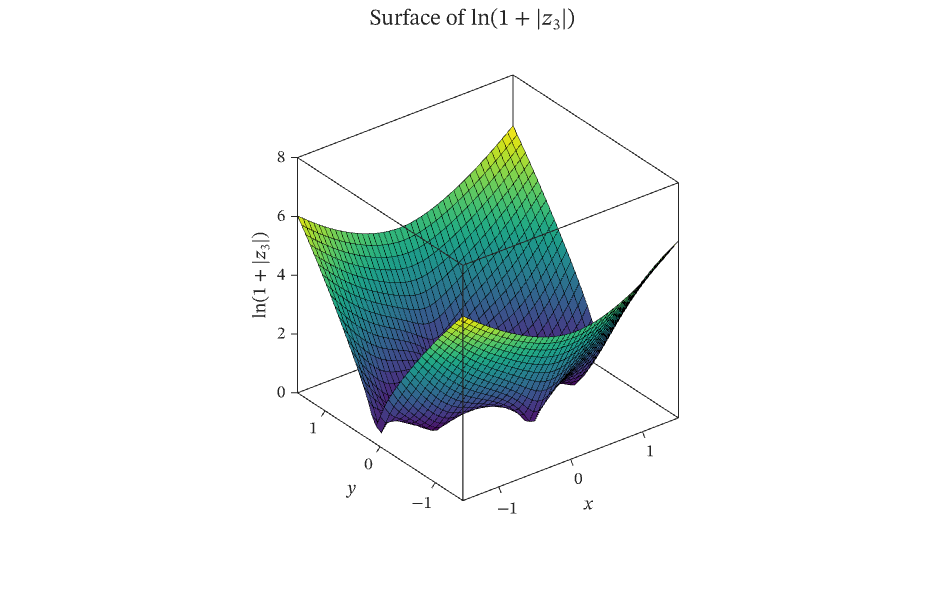

The Julia field drawn as a surface whose faces are coloured by height and outlined with thin black edges. In the viewer, drag in rotate mode to change the azimuth and elevation of the view.

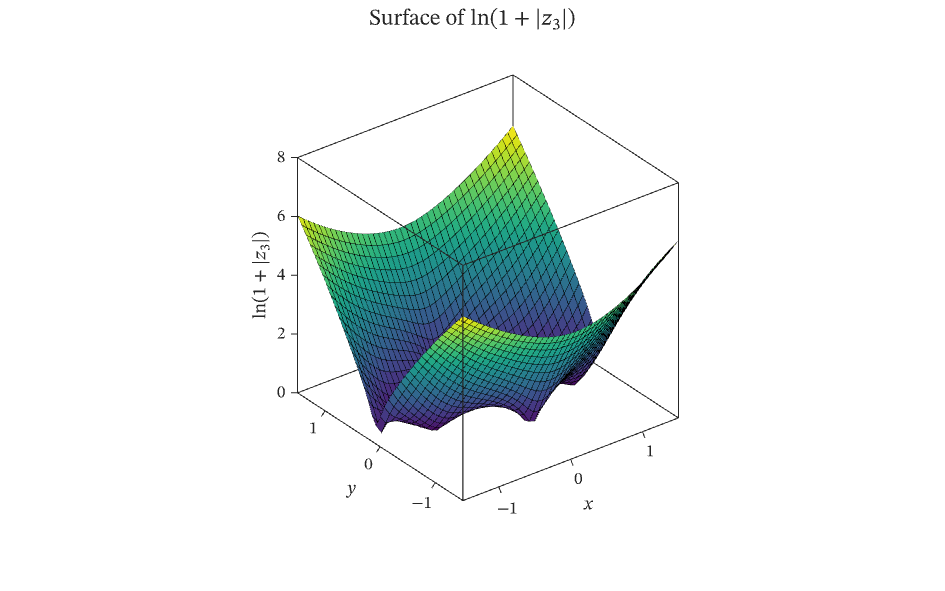

The figure above is live, drawn in the browser by the same engine that draws the viewer: drag it to pan, and click it to zoom with the wheel. Download the PDF for the vector figure that IronLAB exports, or read how to embed a figure of your own.
Source¶
The figure is built by the following code. Its data comes from the functions on the data helpers page.
use ironlab::prelude::*;
use crate::fields::*;
pub const TITLE: &str = "Surface";
pub const DESCRIPTION: &str = "The Julia field drawn as a surface whose faces are coloured by height and outlined \
with thin black edges. In the viewer, drag in rotate mode to change the azimuth and elevation of the view.";
pub fn figure() -> Figure {
let (x, y, z) = julia_grid(41);
let mut fig = Figure::new()
.size_mm(160.0, 100.0)
.title(r"Surface of $\ln(1 + |z_3|)$")
.label("surface")
.label("basics")
.label("interaction")
.parameter("dimensionality", "3D")
.parameter("artists", 1)
.parameter("data_points", 1763)
.parameter("has_legend", false);
let mut ax = fig.axes3(0, 0);
ax.surf(&x, &y, &z).edge_width(0.25);
ax.xlabel("$x$")
.ylabel("$y$")
.zlabel(r"$\ln(1 + |z_3|)$")
.view(-37.5, 30.0);
fig
}
